1TS015B

Browse similar products

Next : 1TS016A

product name: Top push SMD3*2*0.45mm
Product Number: 1TS015B
Material: LCP/SUS301/SUS304/AG
Scope of application: Mobile phone switch,earphone switch ,intelligent wear equipment switch,Digital 3C Products switch,5g communication products switch,Mifi,CPE switch,Game console switch,Smart speaker switch,Driving recorder switch,car central control switch,Smart watch switch,

Ultra-small tact switch, widely used in products that require volume, supports IP67 waterproof rating, high-quality materials, and provides more stable performance.

瓦力游戏| 首页 -瓦力出品,必属精品

Item	Tact switch detail	Tact switch detail2	Tact switch detail3	Tact switch detail4
Article number	1TS015B	1TS015B	1TS015B	1TS015B
Model	1TS015B	1TS015B	1TS015B	1TS015B
Series	1TS015	1TS015	1TS015	1TS015
(LxW) (mm)	3.0mm×2.0mm	3.0mm×2.0mm	3.0mm×2.0mm	3.0mm×2.0mm
(H) (mm)	0.45±0.1mm	0.45±0.1mm	0.45±0.1mm	0.45±0.1mm
Installation height (mm)	0.45±0.1mm	0.45±0.1mm	0.45±0.1mm	0.45±0.1mm
Operation	Top-press type	Top-press type	Top-press type	Top-press type
Welding type	SMD	SMD	SMD	SMD
Live-fire type	Surface mount	Surface mount	Surface mount	Surface mount
Maximum rating	DC 12V/50mA	DC 12V/50mA	DC 12V/50mA	DC 12V/50mA
Contact resistance (<mΩ)	500mΩ max.	500mΩ max.	500mΩ max.	500mΩ max.
Insulation resistance (MΩ at 100V DC)	DC100V 60S 100MΩmin	DC100V 60S 100MΩmin	DC100V 60S 100MΩmin	DC100V 60S 100MΩmin
Withstanding voltage	AC250V(50~60HZ)60Smin	AC250V(50~60HZ)60Smin	AC250V(50~60HZ)60Smin	AC250V(50~60HZ)60Smin
Response time	<10ms (ON, OFF)	<10ms (ON, OFF)	<10ms (ON, OFF)	<10ms (ON, OFF)
Operating force	160gf	180gf	220gf	240gf
Stroke	Short stroke	Short stroke	Short stroke	Short stroke
Stroke (mm)	0.13±0.05mm	0.13±0.05mm	0.13±0.05mm	0.13±0.05mm
Operating life	500000 or more	500000 or more	300000 or more	300000 or more
Operating temperature	–40℃～+90℃	–40℃～+90℃	–40℃～+90℃
Storage temperature	–40℃～+90℃	–40℃～+90℃	–40℃～+90℃
Package style	Reel packaging	Reel packaging	Reel packaging
Mini pakage	10000PCS/reel	10000PCS/reel	10000PCS/reel	10000PCS/reel
Mini pakage
CTNS/QTY	13reel/ctn	13reel/ctn	13reel/ctn	13reel/ctn

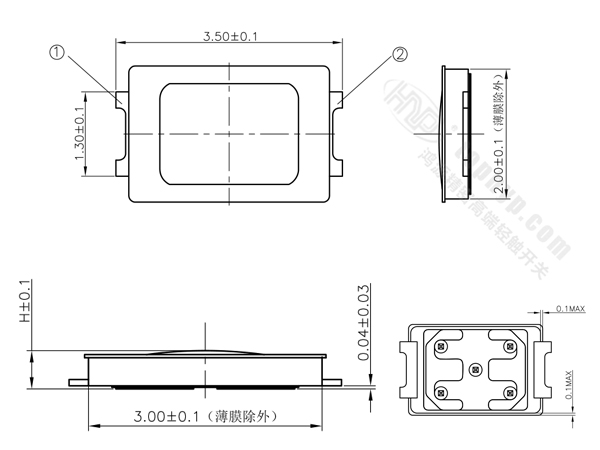

Dimensions:

瓦力游戏| 首页 -瓦力出品,必属精品

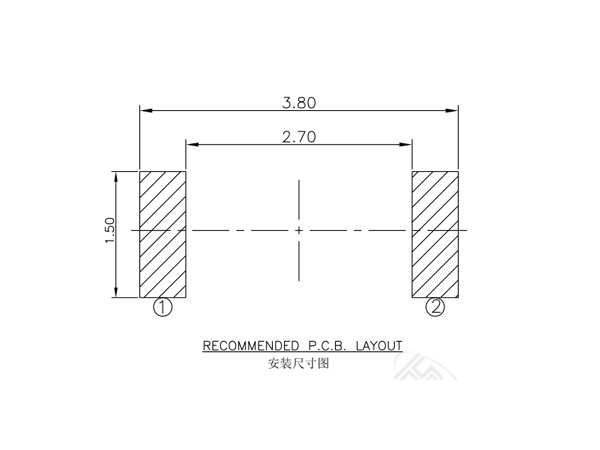

Welding diagram:

瓦力游戏| 首页 -瓦力出品,必属精品

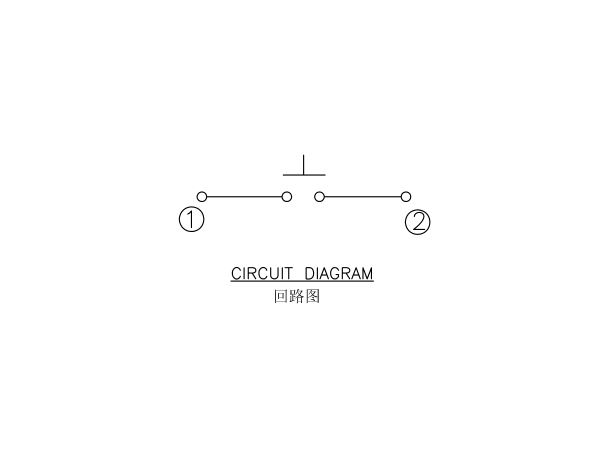

Circuit diagram:

1TS015B-CC3

Key words : Top push waterproof switch,1TS015B
